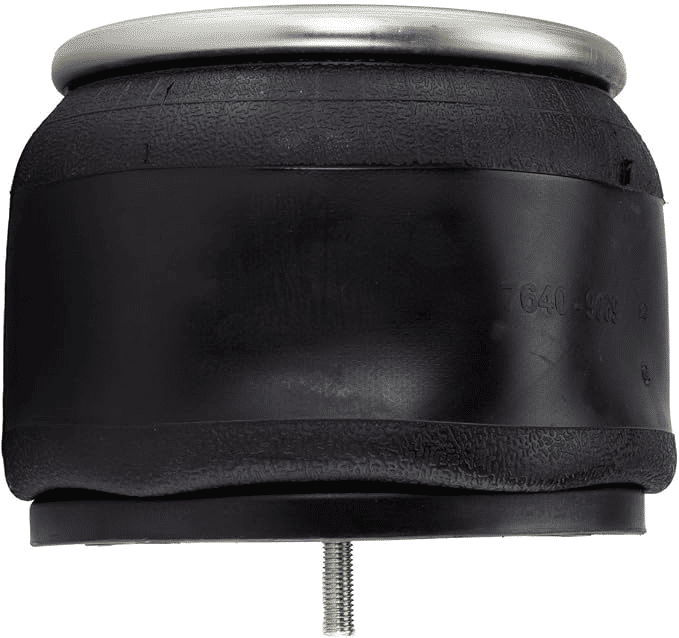

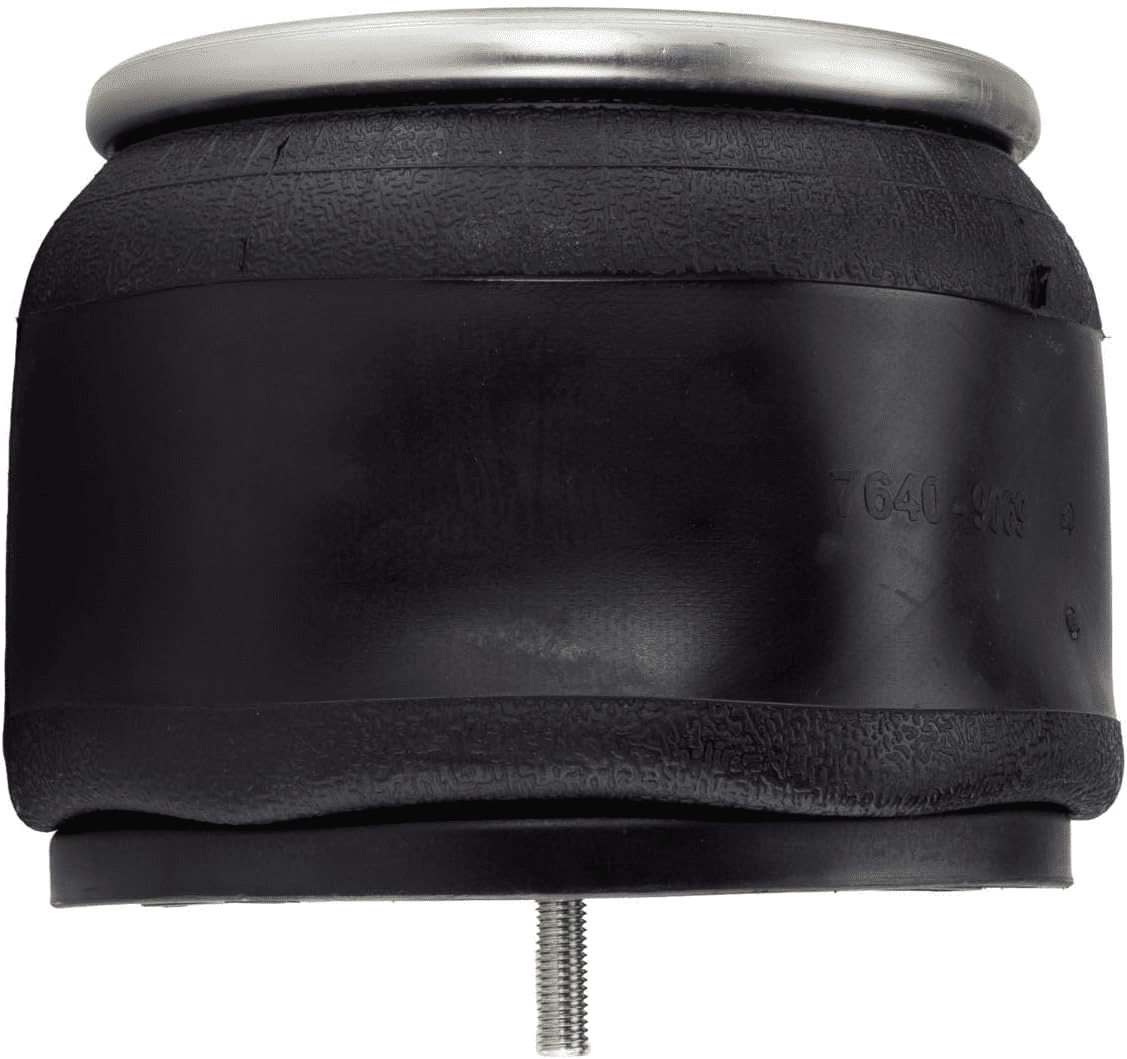

World American WA01-9069C Rolling Lobe Air Spring

• Rolling lobe air spring designed for tractor air suspension systems requiring reliable load support and ride stability.

• Durable base plate construction provides corrosion resistance and long service life in demanding truck suspension applications.

• Load capacity rated at 7,000 lbs at 100 PSI and 5,570 lbs at 80 PSI for dependable suspension performance.

• Compressed height 7.5 inches, extended height 18 to 21.1 inches, maximum diameter 10.12 inches for proper suspension articulation.

• Mounting configuration: Bottom plate single bolt with 2.25 inch center-to-center spacing and parallel alignment. Top plate 2 bolt design with 6.2 inch center-to-center spacing.

Direct replacement for Peterbilt 03-07112, Goodyear 1R12-1080, Firestone W01-358-9069, and ContiTech 91014P312 air suspension systems.

What is the rated load capacity of this air spring?

This air spring is rated for 7,000 lbs at 100 PSI and 5,570 lbs at 80 PSI.

What are the compressed and extended heights?

The compressed height is 7.5 inches, and the extended height ranges from 18 to 21.1 inches.

What are the mounting bolt configurations?

The top plate features a 2-bolt design with 6.2-inch center-to-center spacing, while the bottom plate uses a single bolt with 2.25-inch center-to-center spacing and parallel alignment.

Which OEM parts does this air spring replace?

It serves as a replacement for Peterbilt 03-07112, Goodyear 1R12-1080, Firestone W01-358-9069, and ContiTech 91014P312.
